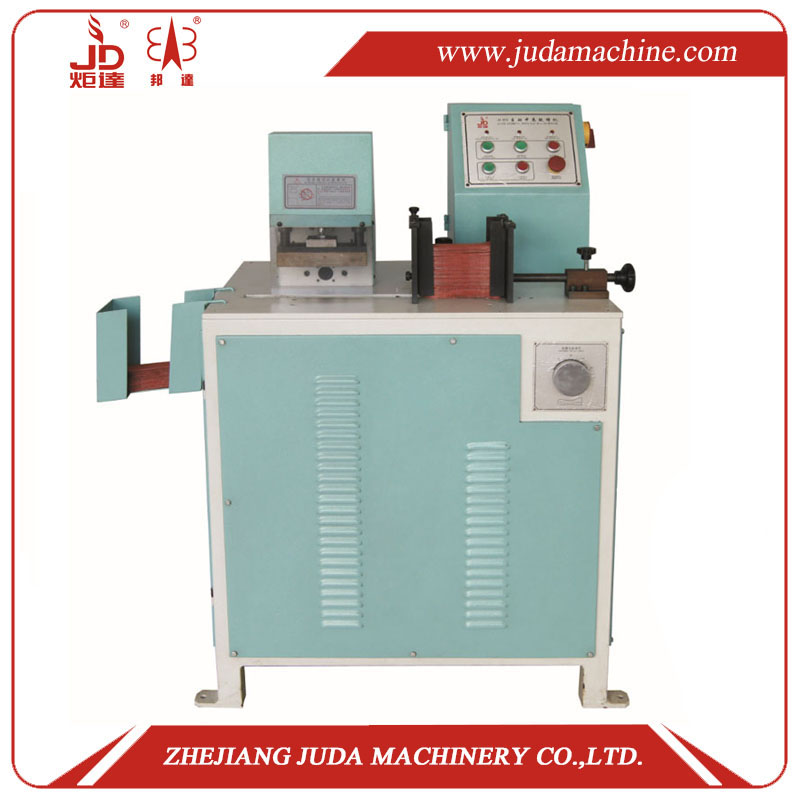

JD-826 AUTOMATIC INSOLE SLOT MILLING MACHINE
USE
The machine is a special device for insole shank board slot milling in the shoe-making industry, it carries out groove milling of the shank board according to the requirement of the iron sheet at the position where the shank board and iron sheet are bonded, ensure the shank board and iron sheet are bonded more flatly.
CHARACTERS
1.Computer chip automatic control is adopted to make the machine work more stable.
2.Automatic feeding and discharging mechanism makes the groove milling work safe and efficient.
3.High-efficiency automatic dust collecting mechanism ensures that there is no pollution to the environment when the machine is operated.
4.According to insole of different lengths and thicknesses, the length and depth of the milling groove can be adjusted.
5.Discharging insole are stacked neatly.
PARAMETER
Model: JD-826
Power: 380V 50Hz
Power of motor: 1.3 kW
Milling groove length: 175mm
Pump working pressure: 0.5-1.8 MPa
Cutter rotation speed: 3400rpm/min
Package size: 850×620×1280mm
Gross weight / Net weight: 300kg/248kg
