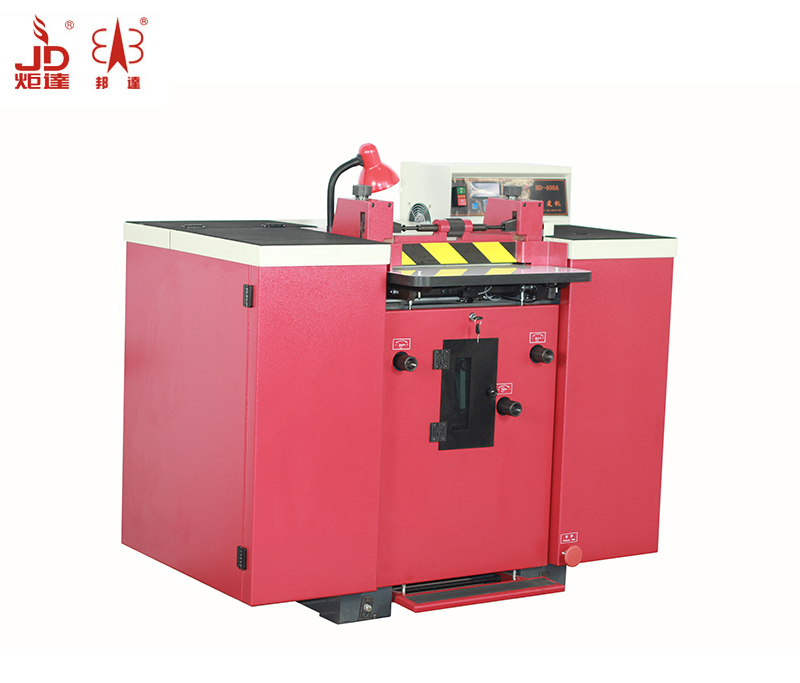

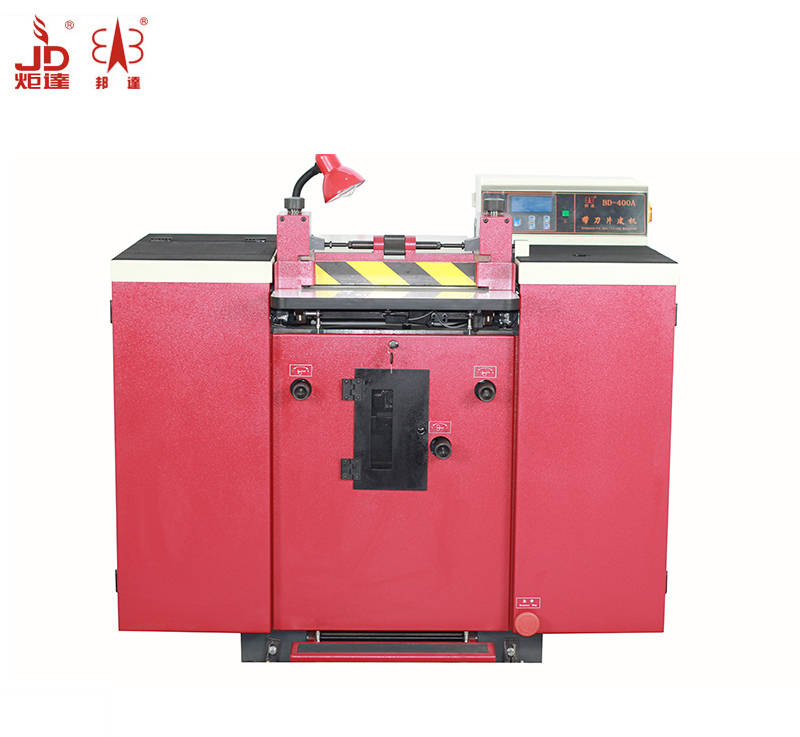

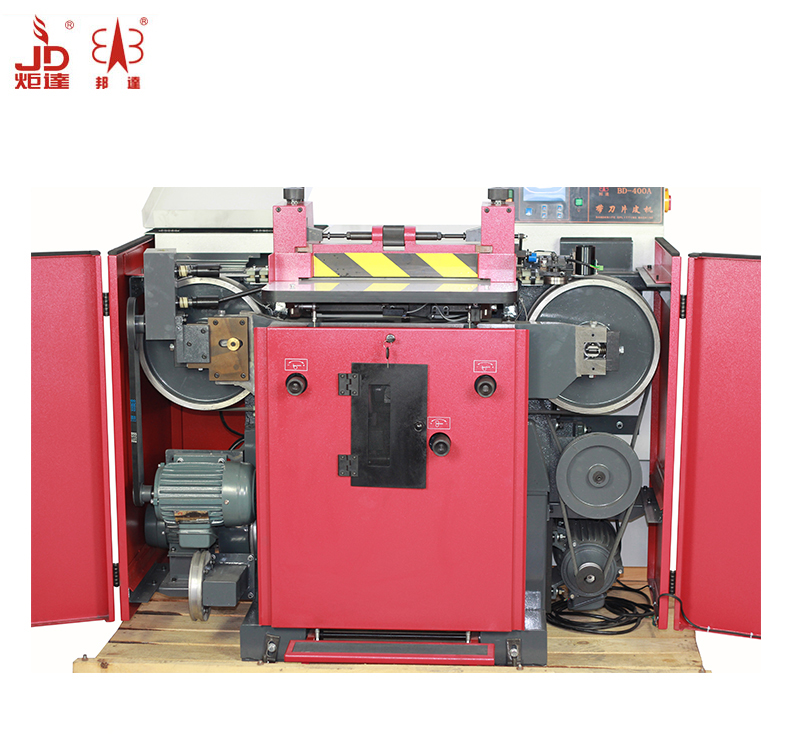

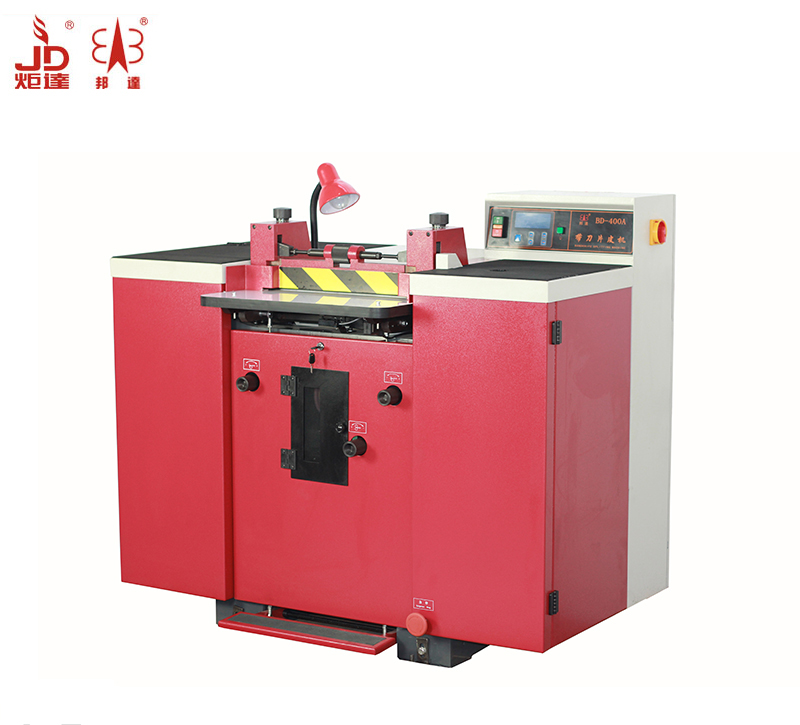

BD-400A PLC BAND KNIFE SPLITTING MACHINE

USE

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 400mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products.

CHARACTERS

1.Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.

2.With automatic feed registration device, no need to adjust cutting tool.

3.Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.

4.Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

5.Freestanding set of dust absorbing device.

PARAMETER

Model: BD-400A

Max width of split：400mm

Max thickness of split：8mm

Min thickness of split：0.15mmwith top bar，0.5mm with top feed roller

Specification of band knife：2830×50×0.6mm

Package size：1430×1130×1275mm

Gross weight / Net weight：650kg/560kg
