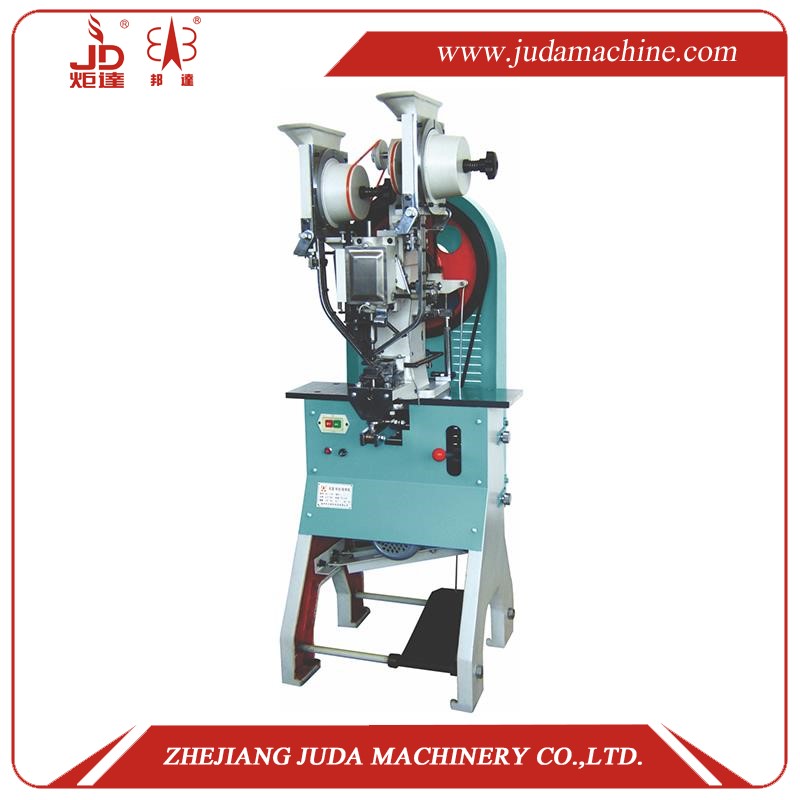

BD-107 DOUBLE-SIDE RIVETING MACHINE

USE

The machine adapts to riveting various kind of rivets in shoes, luggage , clothing, belt, handicraft, etc.. It has the advantage of location by laser positioning.

CHARACTERS

1.The structure of machine is simple and the operation is easy.

2.No need punching holes to thin material and can riveting directly.

3.Equips with laser positioning device, and makes the position of riveting more accurate.

4.Adopt the way of dividing material by rotating plate, delivering from flowing channel and feeding automatically.

5.The riveting structure of clipping rivet makes the rivet more correctly.

PARAMETER

Model: BD-107

Nailing speed: 140times/min

Spacing adjustment: Φ3-Φ7mm

Power of motor: 0.37kW

Package size: 700×670×1555mm

Gross weight / Net weight: 217kg/182kg
